Samlex EVO-4024
Inverter Charger Pure Sine Wave Solares
4000 Watt Pure Sine Inverter / Charger
EVO Series (120 VAC)
Model: EVO-4024
EVOLUTION TM Series Inverter/Charger
Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution TM Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.
Using state-of-the-art technology, the Samlex EVO TM inverter / charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.
The EVO-4024 is a 4000 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50 / 60 Hz. It intelligently integrates a 110 Amp 4 stage Battery Charger and a 70 Amp Transfer Relay into an advanced and affordable off-grid power solution.
(EVO-RC remote control sold separately. See page for EVO-RC for product de
EVO-4024 Samlex America
pure sine wave solar Inverter - Charger
Solar Inverter Charger 4000W 24V Samlex EVO 4024 pure sine wave
GR
Design Features
AC Inputs
* Two separate AC inputs – one for
grid (priority #1), one for generator
(priority #2), connect simultaneously,
no need to reconfigure when different
power sources are available.
* Generator Input is specifically designed
to have more tolerance for wave
form distortion, prevents
unnecessary “rejection of AC input
and switch to inverter” by
tolerating distorted wave forms that can
be produced by gritty generators
* Each AC input is programmable for
voltage and frequency. User determines
what the min and max thresholds are
to switch from Grid or Generator
to Inverter.
* Generator start can be initiated by
“Status Relay” contact, can be
programmed to activate when grid is lost.
Solar Input
* Connect a solar charge controller directly
to the EVO TM though the Battery
Charger external DC Input, seamlessly
integrates solar charging into the
EVO’s power system.
* ONLINE Mode can be used to
prioritize Batteries / Inverter over the
grid, ideal for those wishing to
operate primarily on solar power (when
the grid is available, but might be costly).
Battery Charger
* 3 or 4 stage charging with
Equalization (must be manually initiated).
* Adaptive algorithm is used during Bulk
to assess the condition of the battery.
* Subsequent stages are then based on
the condition of the battery rather than
pre-set time periods for Absorption
and Float. Prevents unnecessary
charging, extends the life of batteries.
* Programmable – set battery
voltage thresholds to initiate charging.
Transfer Switch
* Zero transfer time when switching
from Inverter to Grid. When grid comes
on, the inverter synchronizes with the
wave form and then transfers instantly
at zero crossing.
* <16ms transfer when going from Grid
to Inverter. When grid is lost, the
transfer relay switches to inverter at
the correct place in the wave form,
the transfer takes less than 16ms.
Surge Capacity (Power Boost)
* The EVO TM has 3X surge power
* Additionally, the EVO TM has large
power overload allowances available
for long periods of time. Increased
inverter capacity means you can size
your inverter smaller to handle heavy
surge loads, reducing costs.
State-of-the-Art Technology
* The EVO TM operates at 165
million instructions per second
producing lightning fast load and
response times
* The EVO TM is practically indestructible.
It has “Bullet-Proof Intelligence” in the
form of 9 physical points of
protection monitoring being scanned up
to 10,000 times per second for
adverse conditions. The EVO TM will
detect fault conditions and initiate a
healthy shutdown before any
product damage can be done.

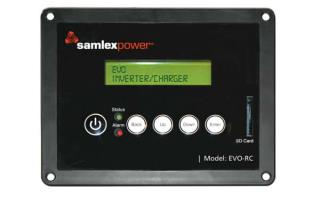

* The EVO-RC remote control
(sold separately) can be used to
capture detailed EVO TM
performance data. Records all
detected faults and the conditions
leading up to them.
* Data is stored on a removable
16GB SD Card (in the remote). Use
data to analyze trends for more
efficient use of system resources
* The EVO TM uses five temperature
sensors placed throughout the unit
to determine operation of 2
speed controlled cooling fans.
Reduces unnecessary fan noise
and energy consumption by only
running when and where the fans
are needed.tails.)
Applications
* Boats,
* RVs, trucks, specialty vehicles
* Alternative energy, off-grid,
* Cabins, remote locations,
* Areas with unreliable utility power
* Back-up, UPS
* Emergency power applications
* Solar power systems
** PROTECTIONS / ALARMS: Battery Low Voltage Alarm and Low / Over Voltage Shut Down; Shut Down under Input; Over Current, Output Over Current, Output Overload and Output Short; Transformer and Heat Sink Overheat Shut Down; Immunity Against Conducted Electrical Transients in Vehicles
Power Boost; AC Input from Grid / Generator; Transfer Relay and Time; Internal Battery Charger; Battery Temperature Compensation; External Battery Charger (Solar Charge Controller) and other data: please consult Data Sheet.
Technical specifications EVO-4024
Continuous Output Power
4000 Watts
Surge Output Power
12000 Watts (<1 ms) 8000 VA (<100 ms)
Output Voltage
120 VAC ± 5%
Output Frequency
60 Hz ± 0,1
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 5% of Output Waveform THD
Peak Efficiency
> 94%
Nominal DC Input Voltage
24 VDC
Maximum Input Current
266 A
DC Input Current at No Load
Normal 25W; Power Saving Mode: <8W
Working environment - Cooling
Indoor use - Temperature controlled fans
Overload Shutdown
**
Over Temperature Shutdown
**
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
29
Dimensions (W x D x H)
325 x 426 x 207mm
Display / Led
Power, Overload, Over Temperature **
Compliance Safety
ETL listed to UL Standards RoHS2; EMI / EMC compliant with FCC (see data sheet)
Wired Remote Control with LED LED Display Wired ON / OFF Control
EVO-RC (sold separately)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
* All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
