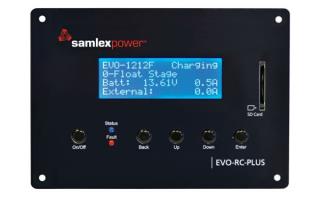

Samlex EVO-RC-PLUS
Control Remote para EVO Inverters Chargers
EVO-RC Remote Control for EVO Series Inverter / Chargers
Model: EVO-RC
Remote Control for Inverter/Chargers EVO-2212, EVO-3012, EVO-2224, EVO-4024, EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E
The EVO-RC is intelligent remote control designed specifically for use with NEW Samlex EvolutionTM Series of Inverter/Chargers.
View real-time activity on the informative 32 character LDC screen while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.
Use the remote to program inverter and battery charging parameters. Save a parameter set on a removable 16GB SD Card (the SD card slot located on the remote face of the EVO-RC). Transfer saved parameters to other EVO TM inverter/chargers or insert the SD card into a computer and make parameter adjustments there.
Data log historic power consumption, inverter functionality, battery charging activity, faults and all of the conditions leading up to them. Analyze trends for more efficient use of off-grid resources.
EVO-RC
Remote Control for EVO Inverters Chargers Samlex
EVO RC Remote Control for EVO Inverters Chargers Samlex
GR
CodeSolarEnergia S. A.
Comunicacion Desarrollo Tecnologia Energia Solar
Quito, Ecuador, Sudamerica
Design Features
* Program various parameters and modes
of operation
* Provides real time and data
logged performance details
* Indicates the status of Inverter &
Charging Modes
* Power ON/OFF, or switch to Standby Mode
* SD Card Slot (accepts SD Card
up to 16GB) to record data (SD Card
not included)
* Inverter / Charger performance
data is logged in text file format
on the SD card that can imported
into Excel
* You do not need the EVO-RC for
basic operation of the inverter - charger,
but it is required to program
parameters and for data logging
* Includes 33 feet of RJ-45 data cable
Applications
* Sistemas de energía solar
* Energía de respaldo de emergencia
* Vehículos de servicio
* Oficinas móviles
* Vehículos recreativos, camping.
* Telecomunicaciones
* Trabajo de campo / sitios de construcción
* Computadoras, impresoras
* Electrónica doméstica: TV,
DVD y videojuegos.
* Herramientas y electrodomésticos
Inversores Onda Sinusoidal Pura
Inversores Cargadores Onda
Sinusoidal Pura
El RC-300 es un control remoto opcional del panel LCD para usar con los inversores PST-1500-12 / 24 / 48, PST-2000-12 / 24, PST-3000-12 / 24 y PST-300S-12E / 24E. Se vende por separado. Garantía limitada de 2 años.
The RC-300 is an optional LCD panel remote control for use with the PST-1500-12 / 24/48, PST-2000-12 / 24, PST-3000-12 / 24 and PST-300S-12E / 24E inverters . Sold separately. 2 year limited warranty.
