3000 Watt Pure Sine Wave Inverter. Safety listed.
PST Series (120 VAC)
Model: PST-3000-24
This high efficiency pure sine inverter converts 24 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz.
Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw.
AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.
Optional LCD remote control, model RC-300.
PST PST-3000-24 Samlex America
pure sine wave solar Inverter
Inversores
solares DC AC
CODESOLAR
ENERGIA S.A.
GR
Design Features
* High efficiency & low RF emissions
* Can be hard wired
* 2x Surge
* Wide DC input range
* Dual GFCI Protected Outlets
* Wide temperature operating range
-20 to +40°C / -4 to +104°F
* Temperature controlled cooling fan
* Low idle power draw
* Remote Input – Use to turn inverter ON
or OFF with ignition start or any other
Remote ON/OFF switch
* Optional LCD remote control, model
RC-300
* UPC – Universal Protection Circuit:
low voltage, over voltage, over
temperature, over load and short circuit
* Safety certified to UL & CSA standards,
FCC compliant
Applications
* Service vehicles
* Mobile Offices
* Boats
* Recreation Vehicles, Camping
* Telecommunication
* Field work / Construction sites
* Solar power systems
* Emergency backup power
* Home electronics: TV, VCR, video games
* Computers, printers
Inverter PST 3000 W 24 V 120 VAC Samlex pure sine wave
Inversores Onda Sinusoidal Pura
CodeSolarEnergia S. A.
Comunicacion Desarrollo Tecnologia Energia Solar
Quito, Ecuador, Sudamerica
Technical specifications PST-3000-24
Continuous Output Power
3000 Watts
Surge Output Power
6000 Watts (< 8 ms)
Output Voltage
120 VAC ± 3%
Output Frequency
60 Hz ± 1%
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 3% of Output Waveform
Peak Efficiency
> 88%
Nominal DC Input Voltage
24 V
Maximum Input Current
180 A
DC Input Current at No Load
< 1,0 A
Working environment - Cooling
Indoor use - Temperature controlled fan
Overload Shutdown
At 110% to 115% for 2 to 2,5 sec
Over Temperature Shutdown
90°C ± 5°C (Sensed at Transformer T3)
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
9,8
Dimensions (W x D x H)
263 x 456,5 x 145 mm
Display / Led
Power, Overload, Over Temperature
Compliance Safety
Intertek - ETL Listed. Conforms to ANSI / UL Standard 458 certified to CSA STD C22.2 107.1-01
Wired Remote Control with LED LED Display Wired ON / OFF Control
RC-300 (sold separately) with 25’ cable
(i) By switching external contact
(ii) By switching external 12V / 24V signal
* All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
Inverter PST 3000 W 24 V 120 VAC Samlex pure sine wave

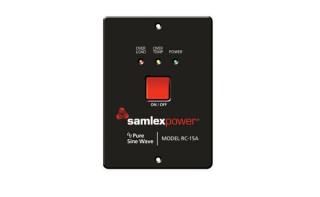

Control remoto opcional para usar con los modelos de inversor PST Series 600 y 1000 vatios.
Optional remote control for use with PST Series 600 and 1000 watt inverter models.

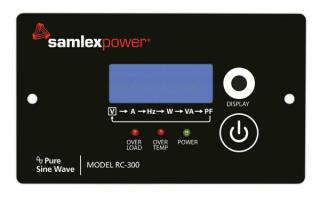

El RC-300 es un control remoto opcional del panel LCD para usar con los inversores PST-1500-12 / 24 / 48, PST-2000-12 / 24, PST-3000-12 / 24 y PST-300S-12E / 24E. Se vende por separado. Garantía limitada de 2 años.
The RC-300 is an optional LCD panel remote control for use with the PST-1500-12 / 24/48, PST-2000-12 / 24, PST-3000-12 / 24 and PST-300S-12E / 24E inverters . Sold separately. 2 year limited warranty.
